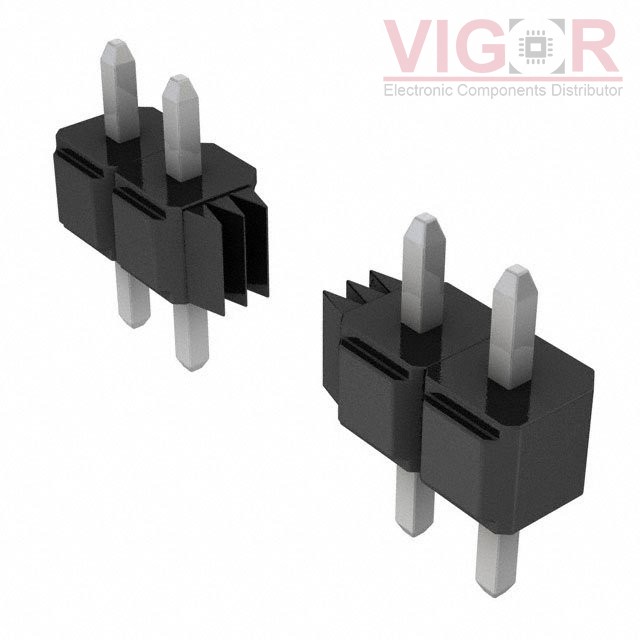

| Type | Description |
|---|---|
| Series: | 929 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header, Breakaway |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 5 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.093" (2.36mm) |
| Contact Length - Post: | 0.110" (2.79mm) |
| Overall Contact Length: | 0.318" (8.08mm) |
| Insulation Height: | 0.115" (2.92mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 200.0µin (5.08µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Features: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 2.5A |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 929800-01-05-RK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
