| Type | Description |
|---|---|
| Series: | Archer M50 |
| Package: | Tube |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 62 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.091" (2.30mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.224" (5.69mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Gold |
| Contact Material: | Copper Alloy |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Features: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 1A per Contact |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of M50-4703145 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER VERT 25POS 2.54MM
CONN HEADER SMD 23POS 2.54MM
CONN HEADER SMD 34POS 2MM

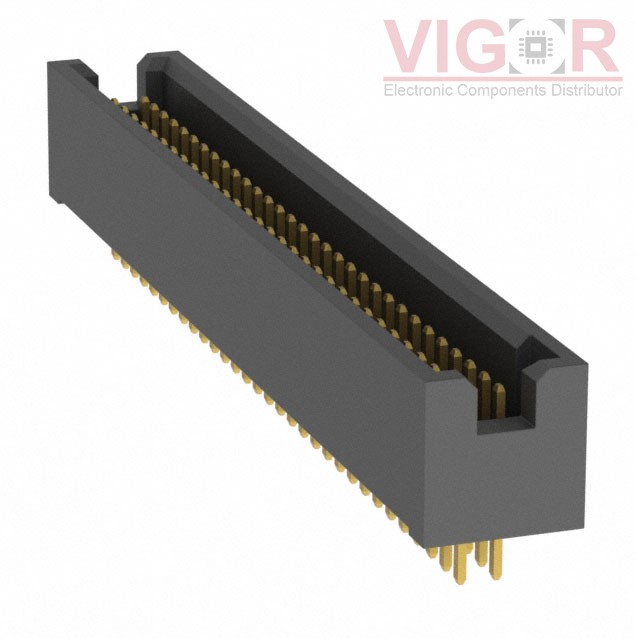

CONN HEADER VERT 62POS 1.27MM
