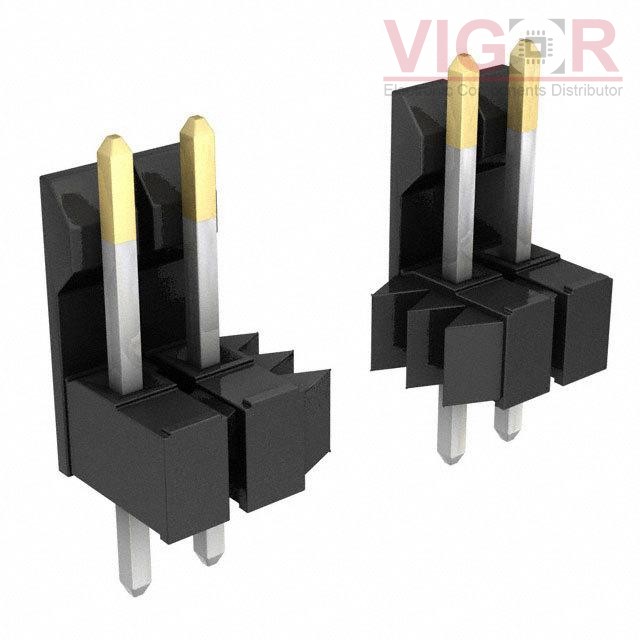

| Type | Description |
|---|---|
| Series: | KK254, 42227 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header, Breakaway |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 14 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 1 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Friction Lock |
| Contact Length - Mating: | 0.295" (7.49mm) |
| Contact Length - Post: | 0.180" (4.57mm) |
| Overall Contact Length: | 0.600" (15.24mm) |
| Insulation Height: | 0.337" (8.56mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | - |
| Insulation Material: | Polyamide (PA), Nylon |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0422271049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
