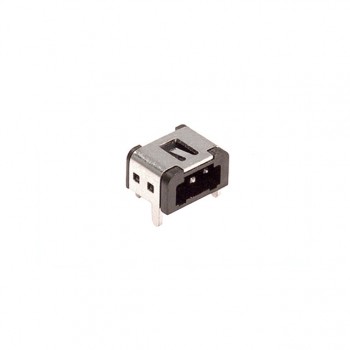

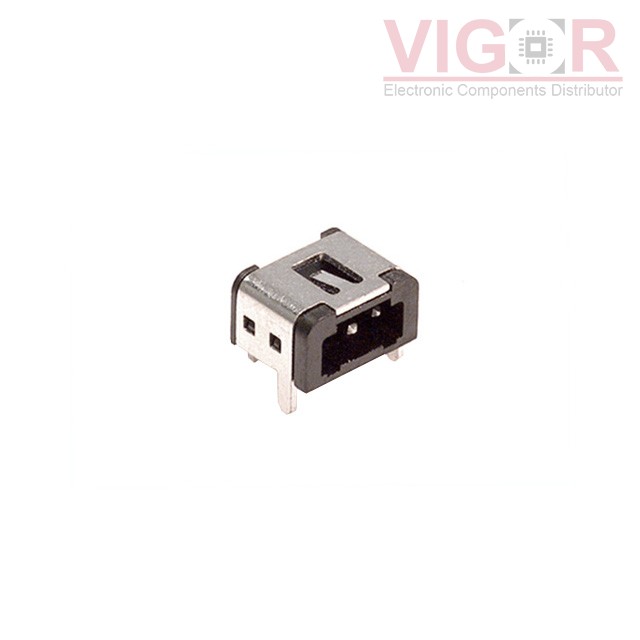

RP34L-5R-3PD(75)

Part No :: RP34L-5R-3PD(75)

Manufacturer: Hirose

VIGOR # :: 4646808

Description: CONN HEADER R/A 3POS 2.35MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: RP34L-5R-3PD(75) PDF

Country of origin: -

Date code: -

RP34L-5R-3PD(75) Specifications

Type	Description
Series:	RP34L
Package:	Tray
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.093" (2.35mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.098" (2.50mm)
Overall Contact Length:	-
Insulation Height:	0.240" (6.10mm)
Contact Shape:	Square
Contact Finish - Mating:	Palladium
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Shielded
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	5A
Voltage Rating:	-
