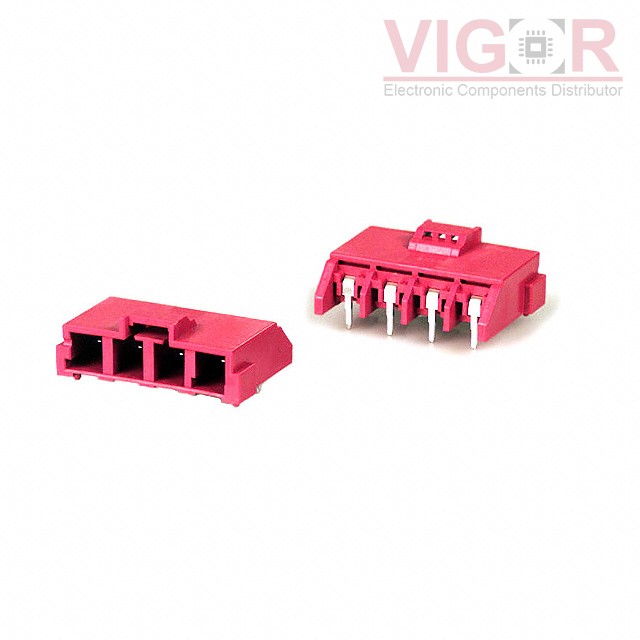

| Type | Description |
|---|---|
| Series: | EnerBee™ DF22 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.312" (7.92mm) |
| Number of Positions: | 4 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Latch Holder |
| Contact Length - Mating: | 0.354" (9.00mm) |
| Contact Length - Post: | 0.146" (3.70mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.480" (12.20mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin-Lead |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | - |
| Contact Material: | Copper Alloy |
| Insulation Material: | Polyamide (PA), Nylon |
| Features: | Board Guide |
| Operating Temperature: | -35°C ~ 85°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Red |
| Current Rating (Amps): | 22A |
| Voltage Rating: | 1000V |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of DF22L-4P-7.92DS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
