SM13B-GHS-TB(LF)(SN)

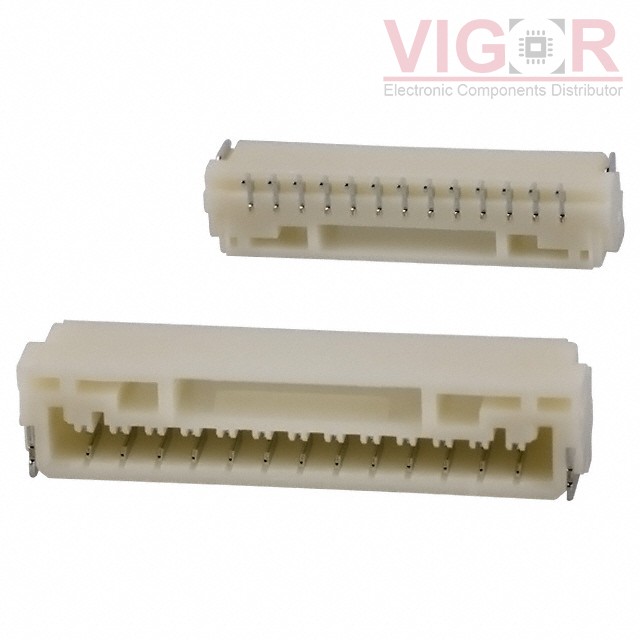

Part No :: SM13B-GHS-TB(LF)(SN)

Manufacturer: JST

VIGOR # :: 4648925

Description: CONN HEADER SMD R/A 13POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SM13B-GHS-TB(LF)(SN) PDF

Country of origin: -

Date code: -

SM13B-GHS-TB(LF)(SN) Specifications

Type	Description
Series:	GH
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Header
Contact Type:	Outer Shroud Contact
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	13
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.167" (4.25mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA9T), Nylon 9T
Features:	Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	1A
Voltage Rating:	50V
