HTSW-131-08-L-D-RA

HTSW-131-08-L-D-RA

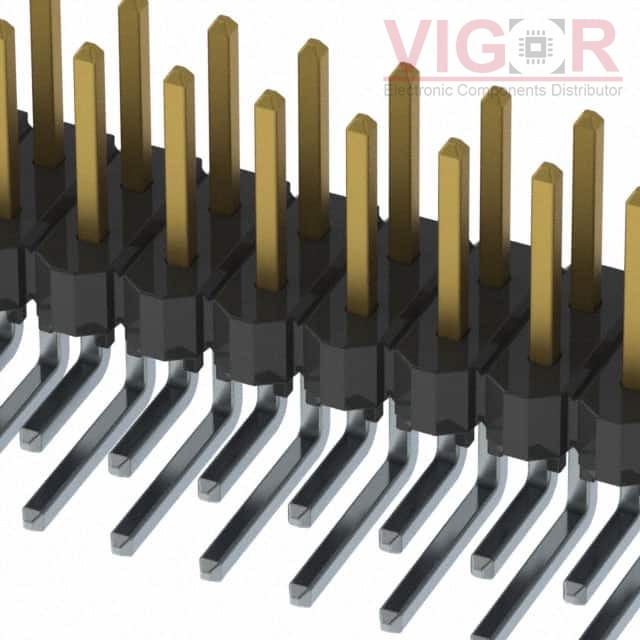

Image is for reference,
please contact us to get the real picture

Part No :

HTSW-131-08-L-D-RA

Manufacturer
Samtec, Inc.
Description
CONN HEADER R/A 62POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 19 - Oct 23 2025
DataSheet
HTSW-131-08-L-D-RA PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HTSW-131-08-L-D-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HTSW-131-08-L-D-RA Specifications
Type Description
Series:HTSW
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:62
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.090" (2.29mm)
Overall Contact Length:-
Insulation Height:0.240" (6.10mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
