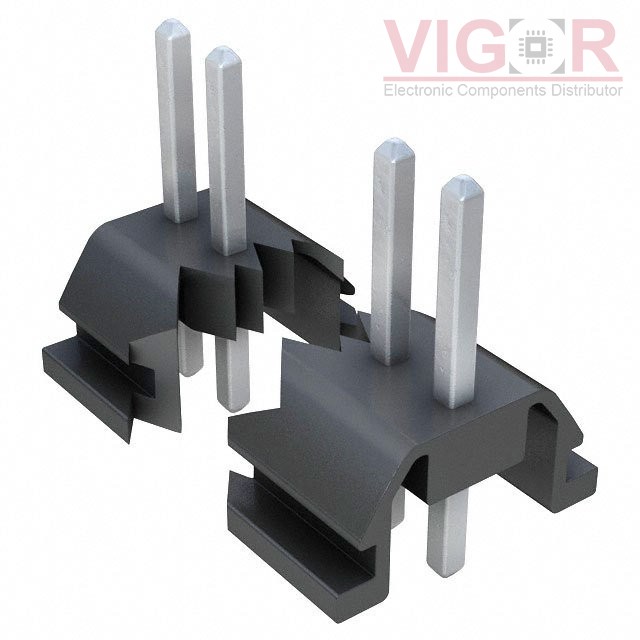

| Type | Description |
|---|---|
| Series: | KK396, 2220 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.156" (3.96mm) |
| Number of Positions: | 11 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Unshrouded |
| Mounting Type: | Panel Mount, Snap-In; Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.718" (18.24mm) |
| Contact Length - Post: | 0.917" (23.29mm) |
| Overall Contact Length: | 1.750" (44.45mm) |
| Insulation Height: | 0.250" (6.35mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-2 |
| Insulation Color: | Natural |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0009571116 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER SMD 50POS 1.27MM

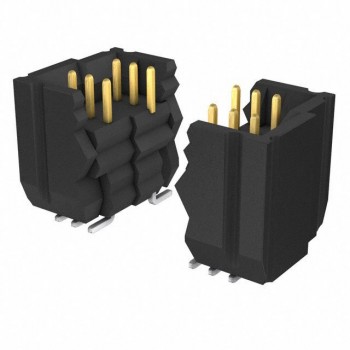

CONN HEADER SMD 33POS 1MM

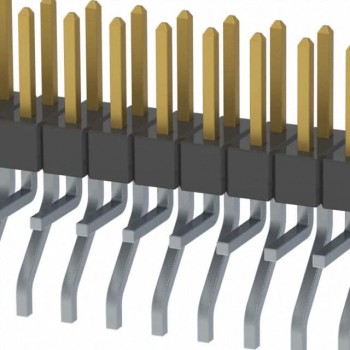

CONN HEADER SMD R/A 38POS 2MM
