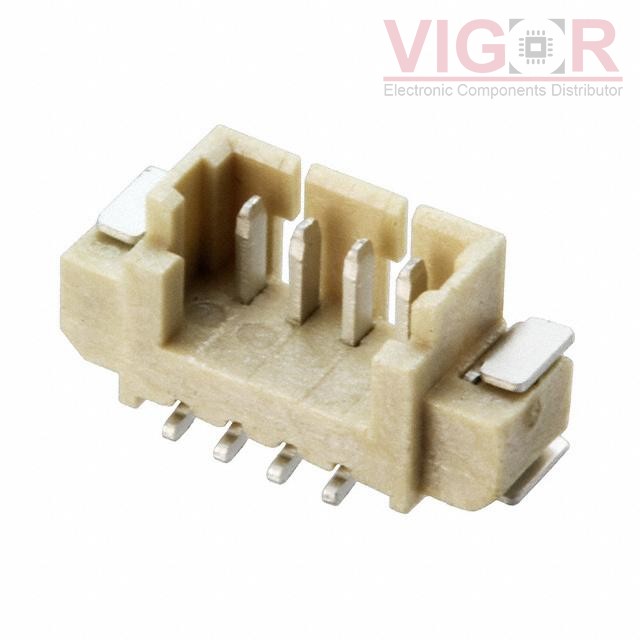

| Type | Description |
|---|---|
| Series: | High Performance Interconnect (HPI) |
| Package: | Tape & Reel (TR) |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.049" (1.25mm) |
| Number of Positions: | 4 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 3 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | - |
| Contact Length - Mating: | 0.089" (2.25mm) |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.187" (4.75mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 120.0µin (3.05µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Features: | Solder Retention |
| Operating Temperature: | -25°C ~ 85°C |
| Ingress Protection: | - |
| Material Flammability Rating: | - |
| Insulation Color: | Natural |
| Current Rating (Amps): | 1A |
| Voltage Rating: | 100VAC |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 2041321-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
