DF3DZ-10P-2V(20)

DF3DZ-10P-2V(20)

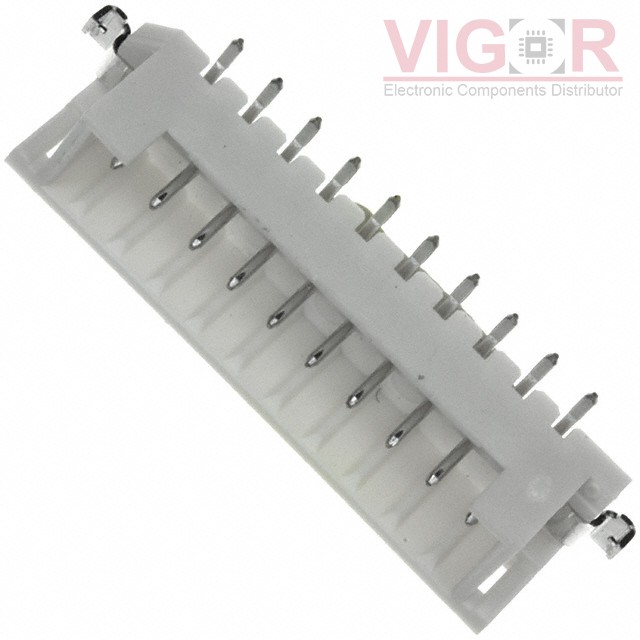

Image is for reference,
please contact us to get the real picture

Part No :

DF3DZ-10P-2V(20)

Manufacturer
Hirose
Description
CONN HEADER SMD 10POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Nov 05 - Nov 09 2025
DataSheet
DF3DZ-10P-2V(20) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of DF3DZ-10P-2V(20) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF3DZ-10P-2V(20) Specifications
Type Description
Series:DF3
Package:Tube
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.232" (5.90mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):3A
Voltage Rating:-
