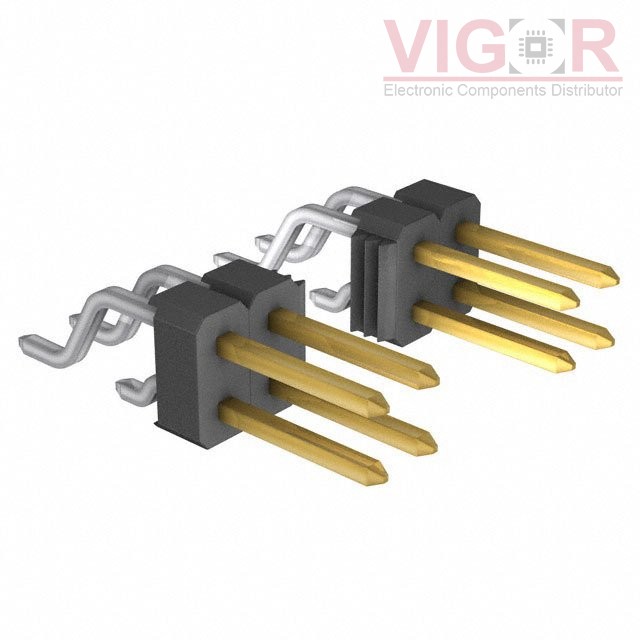

961246-5900-AR-PR

Part No :: 961246-5900-AR-PR

Manufacturer: 3M

VIGOR # :: 4658131

Description: CONN HEADER SMD R/A 46POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 961246-5900-AR-PR PDF

Country of origin: -

Date code: -

961246-5900-AR-PR Specifications

Type	Description
Series:	961
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	46
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.280" (7.11mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.197" (5.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	Pick and Place
Operating Temperature:	-25°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	-
