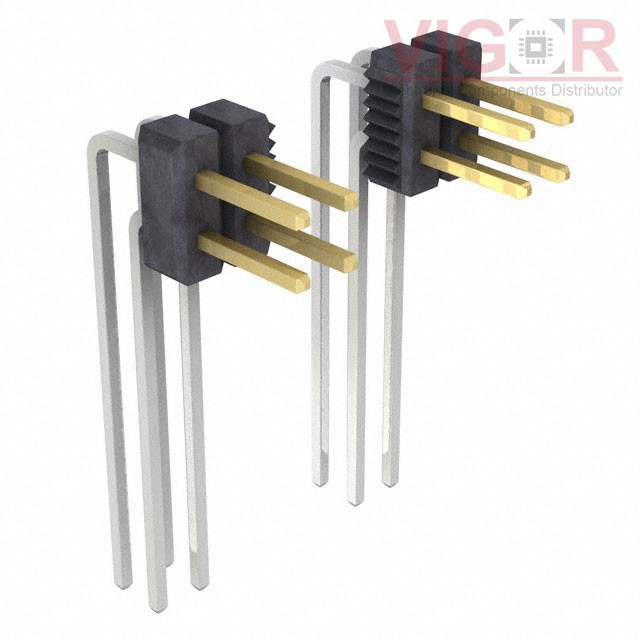

PZC25DBEN

Part No :: PZC25DBEN

Manufacturer: Sullins Connector Solutions

VIGOR # :: 4660204

Description: CONN HEADER R/A 50POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: PZC25DBEN PDF

Country of origin: -

Date code: -

PZC25DBEN Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	0.520" (13.21mm)
Overall Contact Length:	-
Insulation Height:	0.240" (6.10mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
