2-647139-8

Part No :: 2-647139-8

Manufacturer

VIGOR # :: 4662104

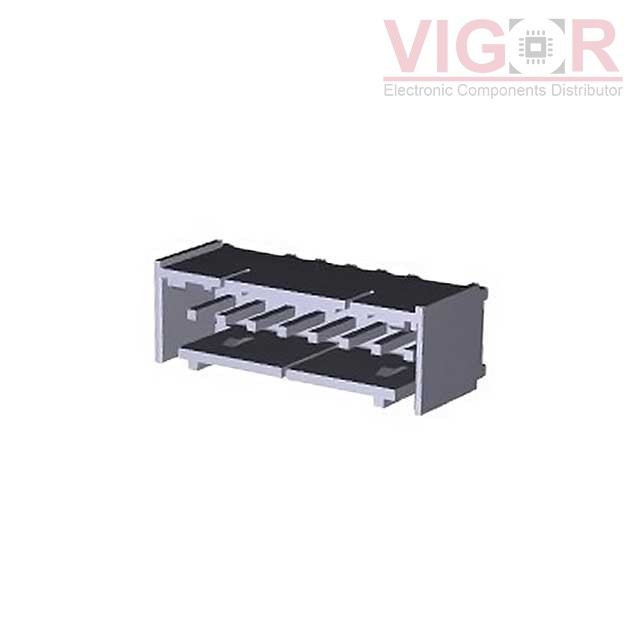

Description: CONN HEADER VERT 8POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-647139-8 PDF

Country of origin: -

Date code: -

2-647139-8 Specifications

Type	Description
Series:	MTA-156
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.300" (7.62mm)
Contact Length - Post:	0.125" (3.18mm)
Overall Contact Length:	0.550" (13.97mm)
Insulation Height:	0.525" (13.34mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	600VAC
