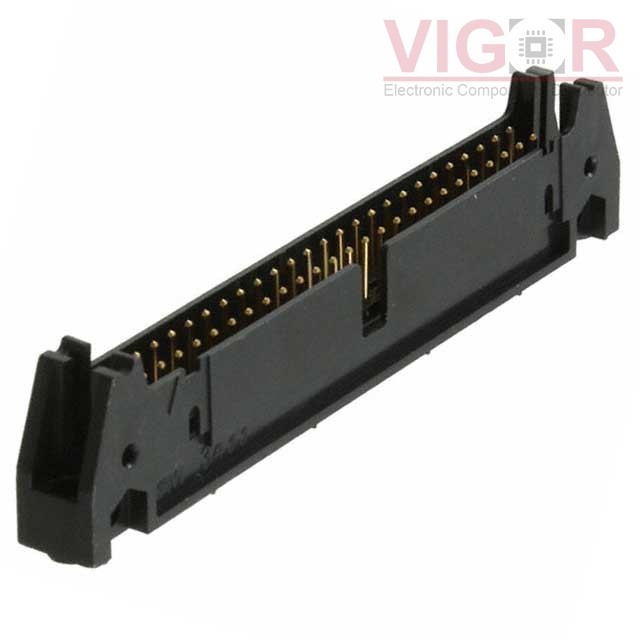

| Type | Description |
|---|---|
| Series: | 3000 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 50 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Length - Post: | 0.112" (2.84mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.340" (8.64mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Material: | Copper Alloy |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features: | Keying Slot, Mounting Flange |
| Operating Temperature: | -55°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 1.75A |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 3433-5002UG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
