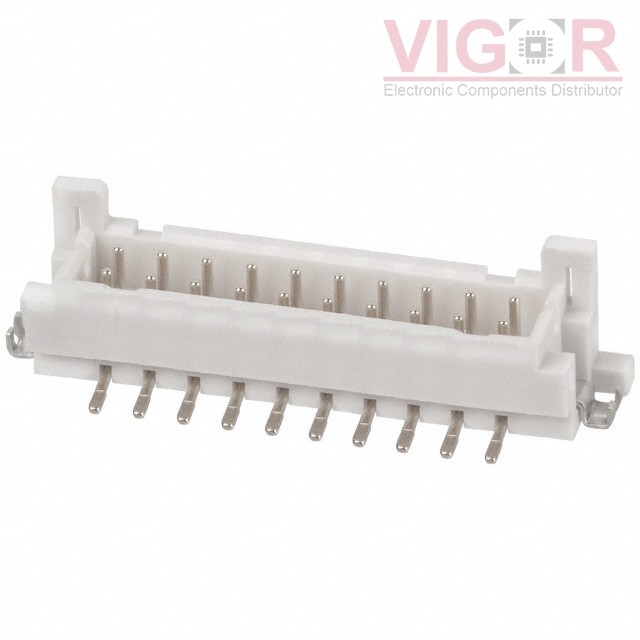

| Type | Description |
|---|---|
| Series: | DF11 |
| Package: | Tube |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Positions: | 20 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Detent Lock |
| Contact Length - Mating: | - |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.283" (7.19mm) |
| Contact Shape: | Circular |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Material: | Brass |
| Insulation Material: | Polyamide (PA), Nylon |
| Features: | Board Guide, Solder Retention |
| Operating Temperature: | -30°C ~ 85°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Beige |
| Current Rating (Amps): | 2A |
| Voltage Rating: | 250V |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of DF11G-20DP-2V(20) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
