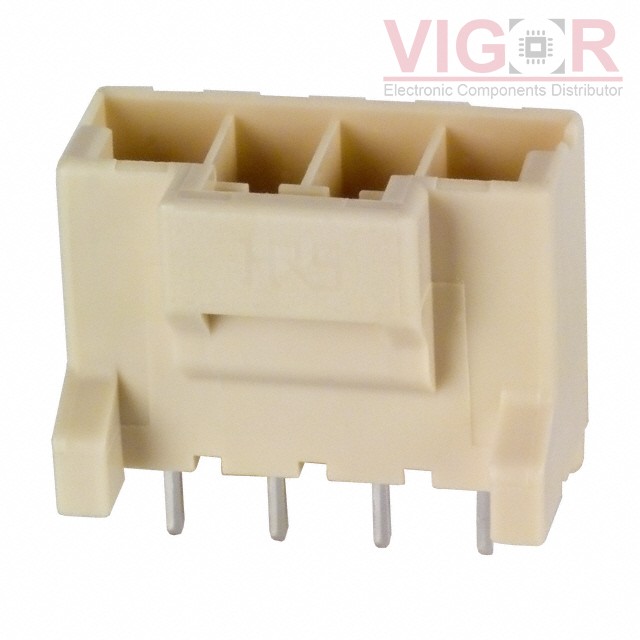

DF7-4P-3.96DSA(01)

DF7-4P-3.96DSA(01)

Image is for reference,
please contact us to get the real picture

Part No :

DF7-4P-3.96DSA(01)

Manufacturer
Hirose
Description
CONN HEADER VERT 4POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 26 - Oct 30 2025
DataSheet
DF7-4P-3.96DSA(01) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of DF7-4P-3.96DSA(01) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF7-4P-3.96DSA(01) Specifications
Type Description
Series:DF7
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.276" (7.00mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.508" (12.90mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):-
Voltage Rating:-
