0530140710

0530140710

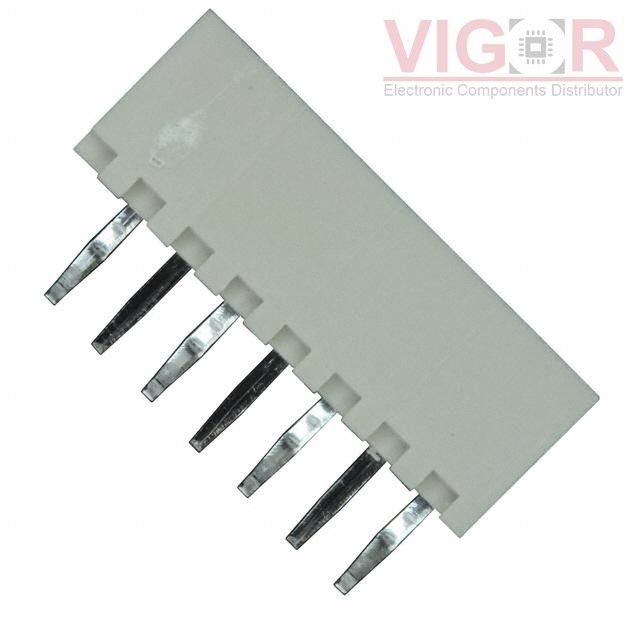

Image is for reference,
please contact us to get the real picture

Part No :

0530140710

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 7POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Nov 06 - Nov 10 2025
DataSheet
0530140710 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 0530140710 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0530140710 Specifications
Type Description
Series:MicroBlade 53014
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.079" (2.00mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.122" (3.10mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:0.327" (8.30mm)
Insulation Height:0.230" (5.85mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT EHT-122-01-S-D-RA-01

EHT-122-01-S-D-RA-01

CONN HEADER R/A 44POS 2MM
HOT TSM-139-03-LM-DV

TSM-139-03-LM-DV

CONN HEADER SMD 78POS 2.54MM

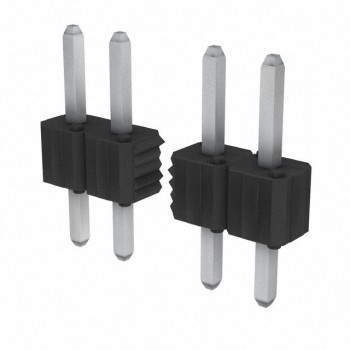

HOT 87827-414HLF
