961234-5500-AR-TP

961234-5500-AR-TP

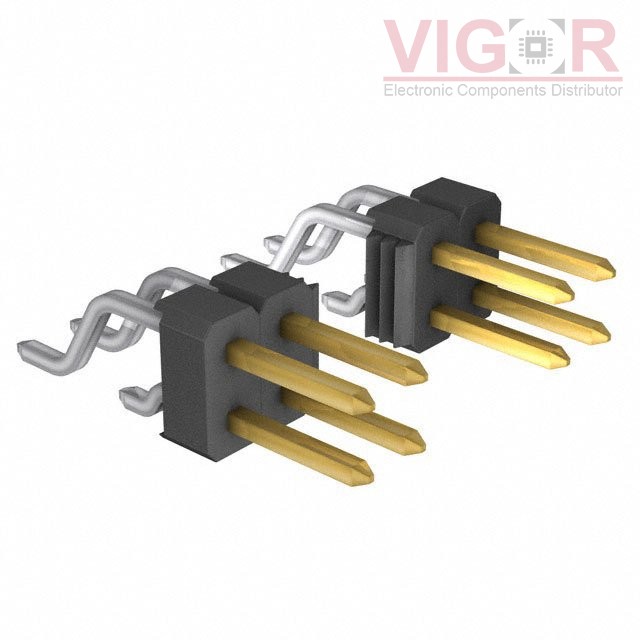

Image is for reference,
please contact us to get the real picture

Part No :

961234-5500-AR-TP

Manufacturer
3M
Description
CONN HEADER SMD R/A 34POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
961234-5500-AR-TP PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 961234-5500-AR-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

961234-5500-AR-TP Specifications
Type Description
Series:961
Package:Tube
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.197" (5.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-25°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:-
