929805-01-23-I

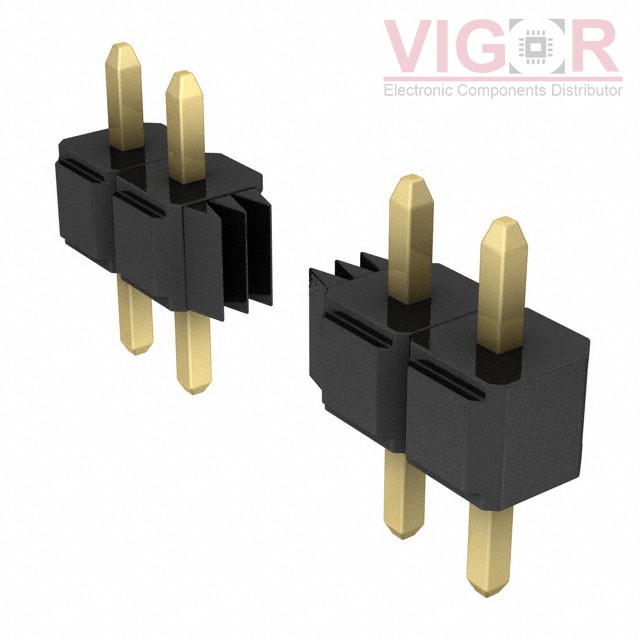

Product image
Product thumb
Part No :

929805-01-23-I

Manufacturer
3M
VIGOR # :

4663182

Description
CONN HEADER VERT 23POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
929805-01-23-I PDF
Country of origin
-
Date code
-
ads
929805-01-23-I Specifications
Type Description
Series:929
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:23
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.093" (2.36mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:0.318" (8.08mm)
Insulation Height:0.115" (2.92mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.5A
Voltage Rating:-
