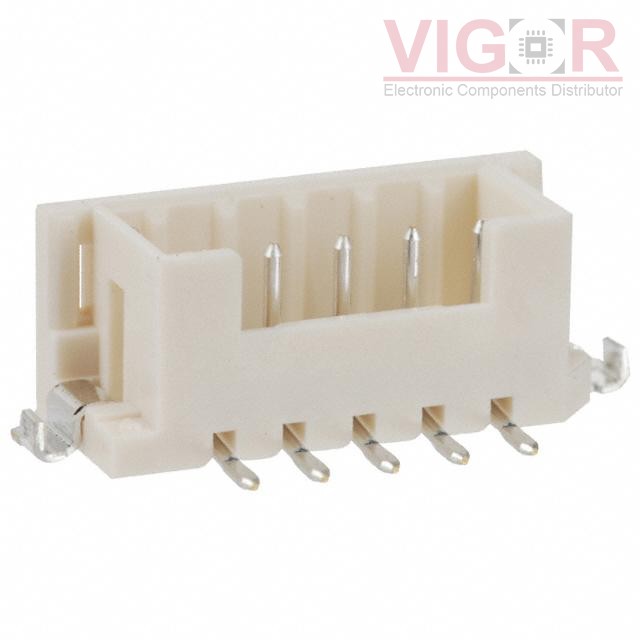

DF3Z-5P-2V(20)

Part No :: DF3Z-5P-2V(20)

Manufacturer: Hirose

VIGOR # :: 4665814

Description: CONN HEADER SMD 5POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF3Z-5P-2V(20) PDF

Country of origin: -

Date code: -

DF3Z-5P-2V(20) Specifications

Type	Description
Series:	DF3
Package:	Tube
Part Status:	Discontinued at Digi-Key
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.232" (5.90mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Solder Retention
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	3A
Voltage Rating:	-
