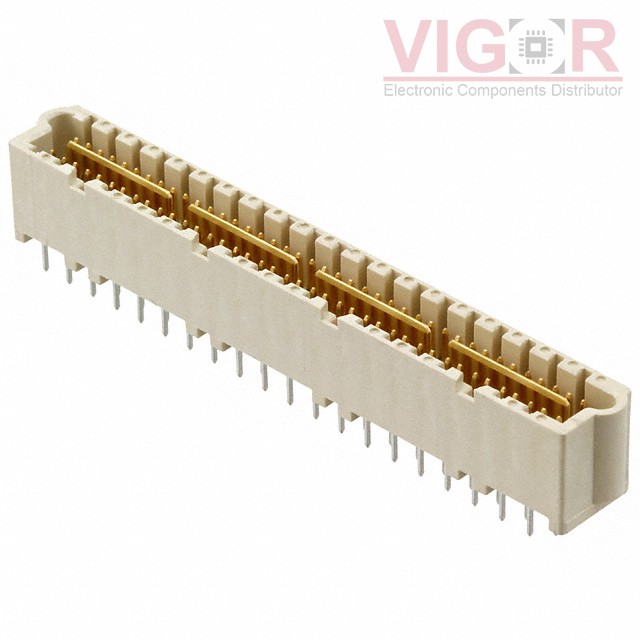

| Type | Description |
|---|---|
| Series: | Micro-Strip |
| Package: | Tube |
| Part Status: | Obsolete |
| Connector Type: | Plug |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 80 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.095" (2.41mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.340" (8.64mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Thermoplastic |
| Features: | Ground Bus (Plane) |
| Operating Temperature: | -65°C ~ 125°C |
| Ingress Protection: | - |
| Material Flammability Rating: | - |
| Insulation Color: | Natural |
| Current Rating (Amps): | Varies by Wire Gauge |
| Voltage Rating: | 30VAC |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 5536280-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

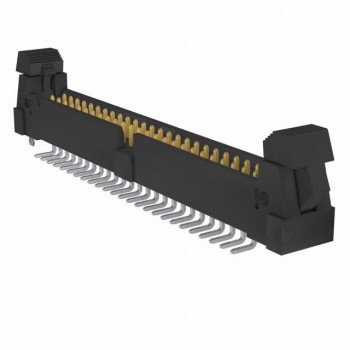

CONN HEADER SMD 50POS 2MM

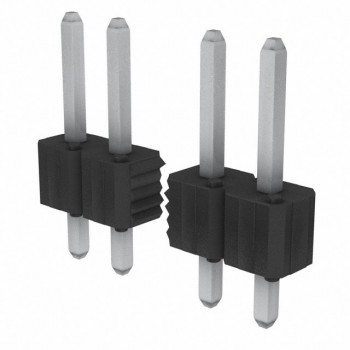

CONN HEADER VERT 17POS 2.54MM
