1586136-1

Part No :: 1586136-1

Manufacturer

VIGOR # :: 4671314

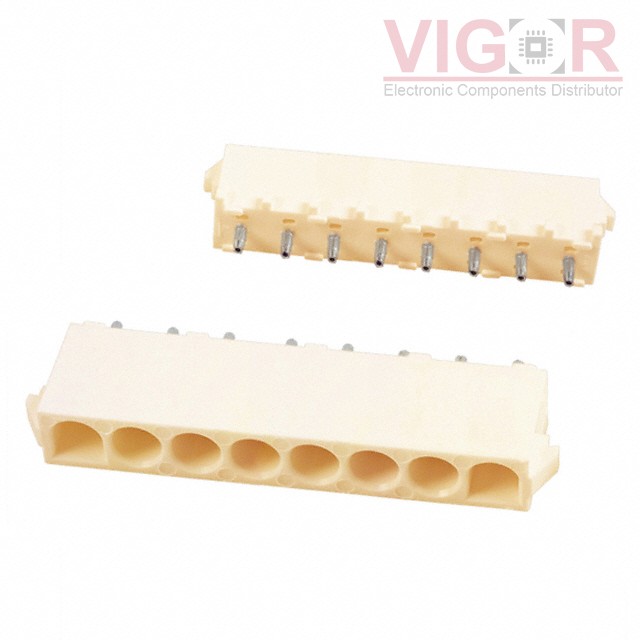

Description: CONN HEADER VERT 8POS 6.35MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1586136-1 PDF

Country of origin: -

Date code: -

1586136-1 Specifications

Type	Description
Series:	Universal MATE-N-LOK
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.250" (6.35mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.155" (3.94mm)
Overall Contact Length:	-
Insulation Height:	0.550" (13.97mm)
Contact Shape:	Circular
Contact Finish - Mating:	-
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	12A
Voltage Rating:	600VAC
