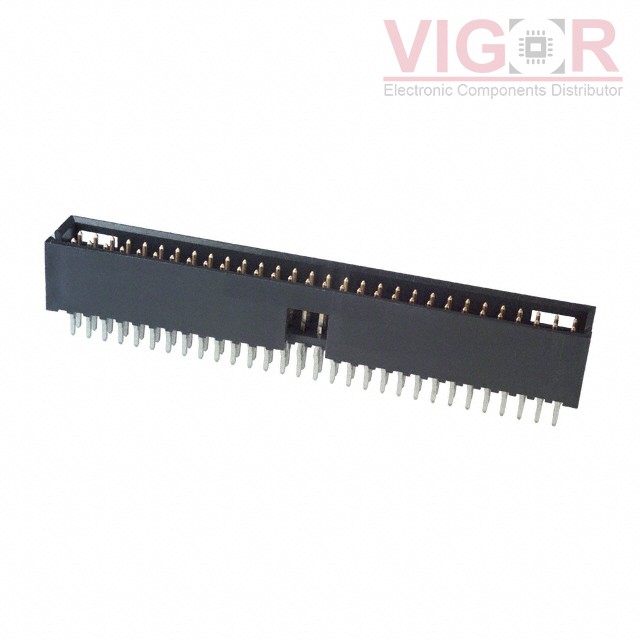

7-102699-8

Part No :: 7-102699-8

Manufacturer

VIGOR # :: 4671556

Description: CONN HEADER VERT 60POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 7-102699-8 PDF

Country of origin: -

Date code: -

7-102699-8 Specifications

Type	Description
Series:	AMPMODU Mod II
Package:	Tray
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	60
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Press-Fit, Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.320" (8.13mm)
Contact Length - Post:	0.250" (6.35mm)
Overall Contact Length:	0.660" (16.76mm)
Insulation Height:	0.440" (11.18mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
