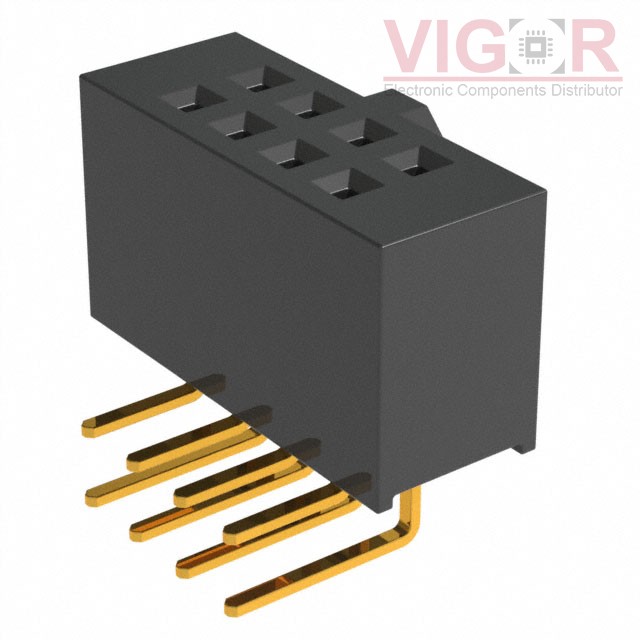

SFH11-NPPC-D04-RA-BK

Part No :: SFH11-NPPC-D04-RA-BK

Manufacturer: Sullins Connector Solutions

Description: CONN HDR 8POS 0.1 GOLD PCB R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SFH11-NPPC-D04-RA-BK PDF

Availability: 0 pieces

Current price of SFH11-NPPC-D04-RA-BK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SFH11-NPPC-D04-RA-BK Specifications

Type	Description
Series:	SFH11
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	8
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Black
Insulation Height:	0.236" (6.00mm)
Contact Length - Post:	0.106" (2.69mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Polarizing Key
Current Rating (Amps):	3A
Voltage Rating:	-
