M80-8502042

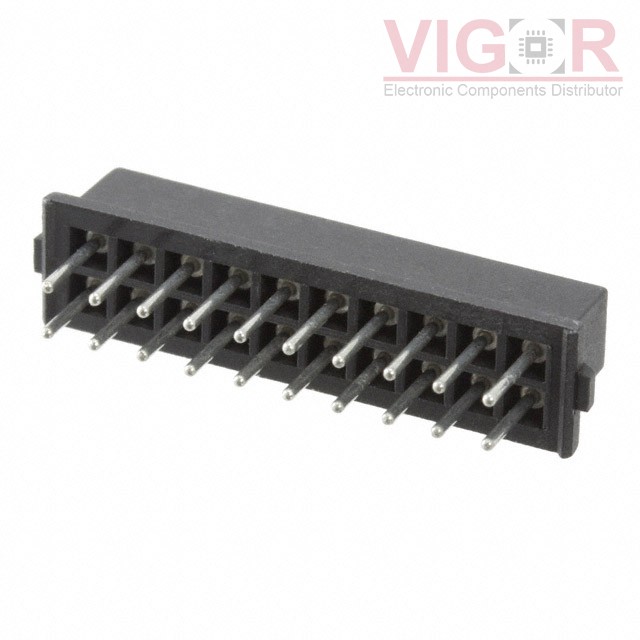

Product image
Product thumb
Part No :

M80-8502042

Manufacturer
Harwin
VIGOR # :

3104810

Description
CONN RCPT 20POS 0.079 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
DataSheet
M80-8502042 PDF
Country of origin
-
Date code
-
ads
M80-8502042 Specifications
Type Description
Series:Datamate L-Tek
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:12.0µin (0.30µm)
Insulation Color:Black
Insulation Height:0.202" (5.14mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:7.23mm, 7.85mm
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:800V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 87
Shipped from
HK warehouse
Expected Shipping Date
Apr 27 - May 01 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $8.8900 $8.89
10 $8.5075 $85.08
100 $7.1540 $715.40
500 $5.9939 $2 996.96
1000 $5.2978 $5 297.85

Current price of M80-8502042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
HLE-117-02-G-DV-BE-A-P

HLE-117-02-G-DV-BE-A-P

CONN RCPT 34POS 0.1 GOLD SMD

311-99-132-61-001000

311-99-132-61-001000

CONN RCPT 32POS 0.1 TIN-LEAD PCB

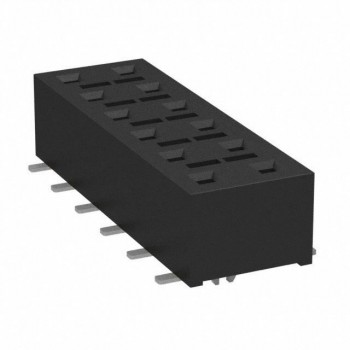

HLE-106-02-S-DV-LC
