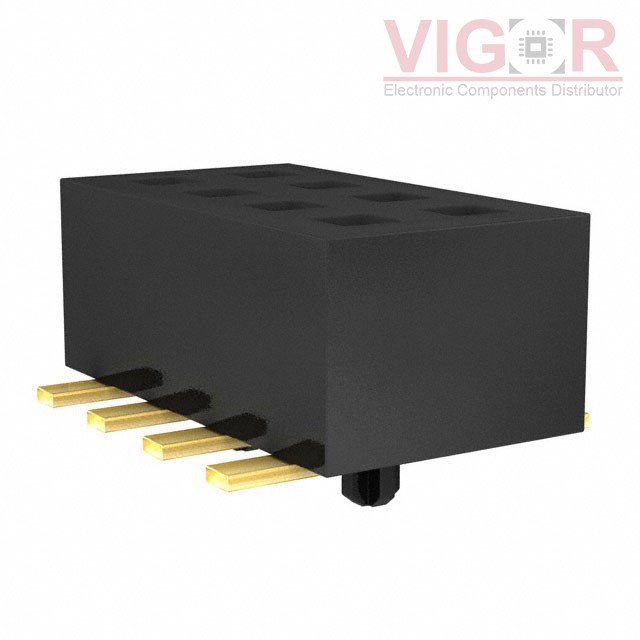

CLP-104-02-G-D-BE-A-TR

Part No :: CLP-104-02-G-D-BE-A-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3108032

Description: CONN RCPT 8POS 0.05 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: CLP-104-02-G-D-BE-A-TR PDF

Country of origin: -

Date code: -

CLP-104-02-G-D-BE-A-TR Specifications

Type	Description
Series:	CLP
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Receptacle, Bottom Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	8
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.084" (2.14mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide
Current Rating (Amps):	3.3A per Contact
Voltage Rating:	240VAC, 330VDC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 04 - Nov 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.5377~~	~~$1.54~~
125	~~$1.4202~~	~~$177.53~~

Current price of CLP-104-02-G-D-BE-A-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CLP-116-02-G-D-A

CONN RCPT 32POS 0.05 GOLD SMD

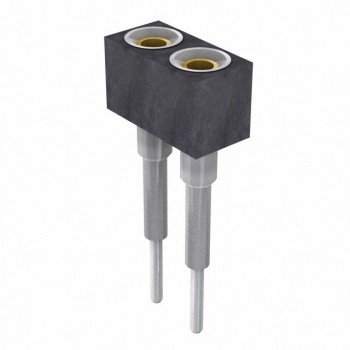

317-87-102-41-022101
