SSQ-115-02-S-D

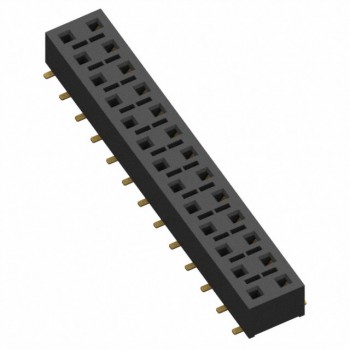

Image is for reference,
please contact us to get the real picture

Part No :: SSQ-115-02-S-D

Manufacturer: Samtec, Inc.

Description: CONN RCPT 30POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SSQ-115-02-S-D PDF

Availability: 0 pieces

Unit Price: ~~$5.35000~~

Current price of SSQ-115-02-S-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSQ-115-02-S-D Specifications

Type	Description
Series:	SSQ
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board or Cable
Number of Positions:	30
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Black
Insulation Height:	0.335" (8.51mm)
Contact Length - Post:	0.194" (4.93mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	6.3A per Contact
Voltage Rating:	550VAC
