803-91-010-61-001000

Part No :: 803-91-010-61-001000

Manufacturer: Mill-Max

VIGOR # :: 3109753

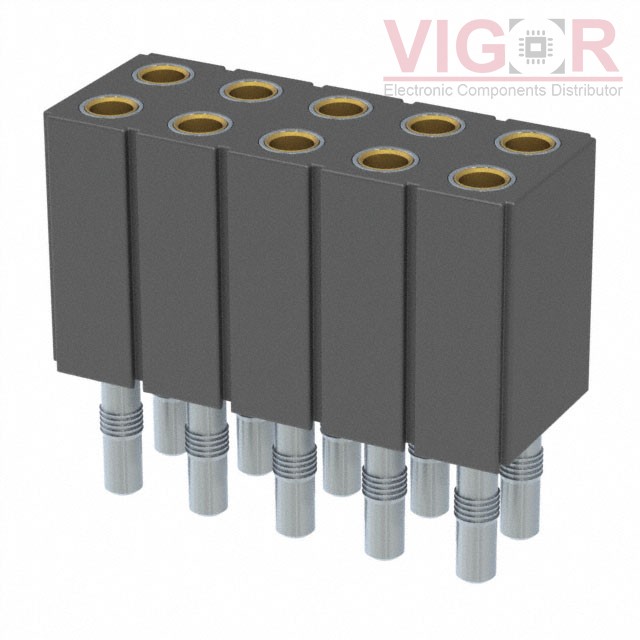

Description: CONN RCPT 10POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 803-91-010-61-001000 PDF

Country of origin: -

Date code: -

803-91-010-61-001000 Specifications

Type	Description
Series:	803
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	10
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Press-Fit, Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.276" (7.00mm)
Contact Length - Post:	0.104" (2.64mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin-Lead
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	4.5A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 22 - May 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.9438~~	~~$12.94~~
50	~~$12.9438~~	~~$647.19~~

Current price of 803-91-010-61-001000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
