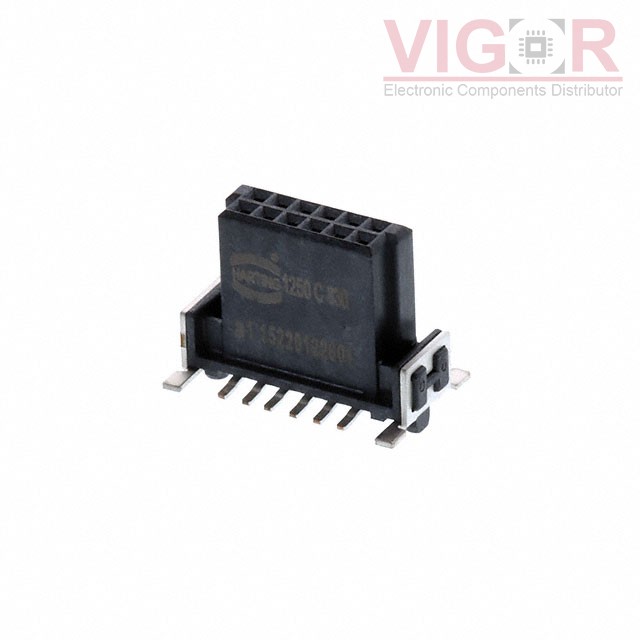

15220122601000

Part No :: 15220122601000

Manufacturer: HARTING

VIGOR # :: 3110625

Description: CONN RCPT 12POS 0.05 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 15220122601000 PDF

Country of origin: -

Date code: -

15220122601000 Specifications

Type	Description
Series:	har-flex®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.356" (9.05mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	10.8mm ~ 13.8mm
Ingress Protection:	-
Features:	Board Guide, Pick and Place, Solder Retention
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 401

Shipped from

HK warehouse

Expected Shipping Date

Apr 21 - Apr 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.1700~~	~~$4.17~~
280	~~$2.9173~~	~~$816.84~~
560	~~$2.8340~~	~~$1 587.01~~
840	~~$2.5839~~	~~$2 170.48~~
1400	~~$2.4172~~	~~$3 384.08~~
1960	~~$2.3338~~	~~$4 574.33~~
2800	~~$2.2505~~	~~$6 301.37~~

Current price of 15220122601000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

831-83-013-10-001101

CONN SOCKET 13POS 0.079 GOLD PCB

801-83-028-10-001101

CONN SOCKET 28POS 0.1 GOLD PCB

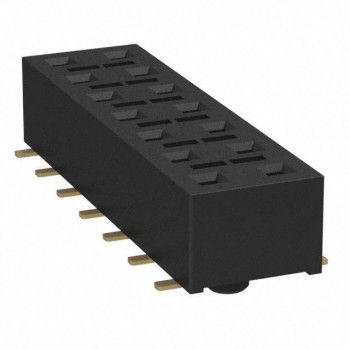

HLE-107-02-G-DV-A-TR
