5025841070

5025841070

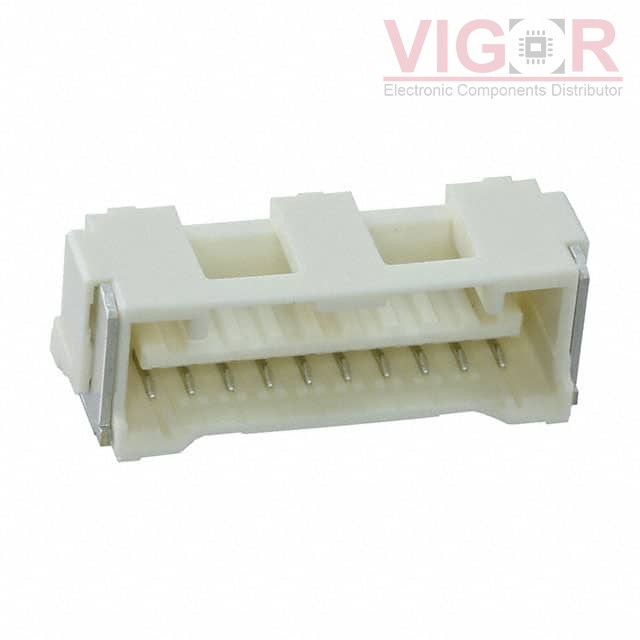

Image is for reference,
please contact us to get the real picture

Part No :

5025841070

Manufacturer
Woodhead - Molex
Description
CONN RCPT 10POS 0.059 TIN SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Nov 05 - Nov 09 2025
DataSheet
5025841070 PDF
Availability
6852 pieces
Unit Price
$1.16000

Current price of 5025841070 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5025841070 Specifications
Type Description
Series:CLIK-Mate 502584
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Receptacle
Contact Type:Forked
Style:Board to Cable/Wire
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.059" (1.50mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Insulation Color:Beige
Insulation Height:0.285" (7.25mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place, Solder Retention
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 316-91-114-41-006000

316-91-114-41-006000

CONN SOCKET 14POS 0.1 GOLD PCB

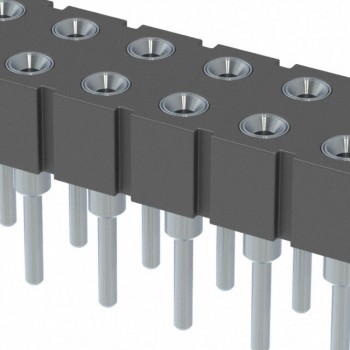

HOT 803-99-068-10-002000
