M22-6551042R

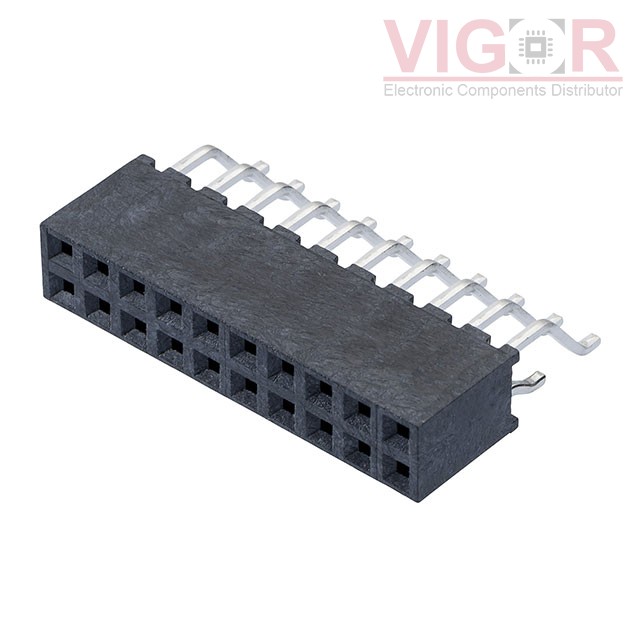

Image is for reference,
please contact us to get the real picture

Part No :: M22-6551042R

Manufacturer: Harwin

Description: CONN RCPT 20P 0.079 GOLD SMD R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: M22-6551042R PDF

Availability: 77 pieces

Unit Price: ~~$2.68000~~

Current price of M22-6551042R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M22-6551042R Specifications

Type	Description
Series:	M22
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board
Number of Positions:	20
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	0.59µin (0.015µm)
Insulation Color:	Black
Insulation Height:	0.157" (4.00mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	2A
Voltage Rating:	-
