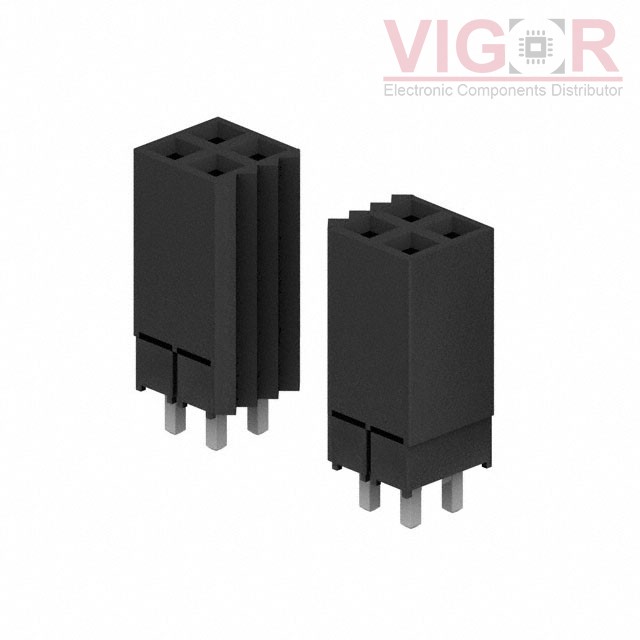

ESQ-109-12-T-D

Part No :: ESQ-109-12-T-D

Manufacturer: Samtec, Inc.

VIGOR # :: 3114692

Description: CONN SOCKET 18POS 0.1 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: ESQ-109-12-T-D PDF

Country of origin: -

Date code: -

ESQ-109-12-T-D Specifications

Type	Description
Series:	ESQ
Package:	Tube
Part Status:	Active
Connector Type:	Elevated Socket
Contact Type:	Forked
Style:	Board to Board
Number of Positions:	18
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.435" (11.05mm)
Contact Length - Post:	0.090" (2.29mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	5.7A per Contact
Voltage Rating:	550VAC
