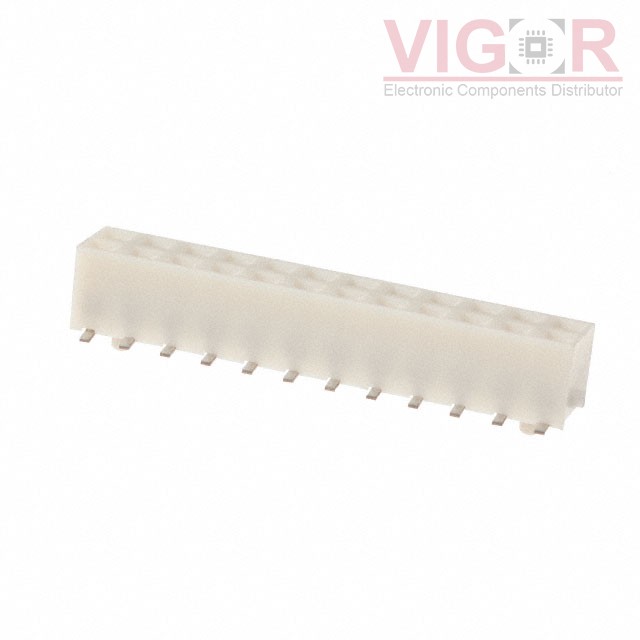

A3-24DA-2SV(71)

Part No :: A3-24DA-2SV(71)

Manufacturer: Hirose

Description: CONN RCPT 24POS 0.079 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: A3-24DA-2SV(71) PDF

Availability: 237 pieces

Unit Price: ~~$2.16000~~

Current price of A3-24DA-2SV(71) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

A3-24DA-2SV(71) Specifications

Type	Description
Series:	A3
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	24
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Insulation Color:	Brown
Insulation Height:	0.165" (4.20mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	5.1mm, 6mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	1A
Voltage Rating:	200VAC
