IPS1-105-01-S-D-VS

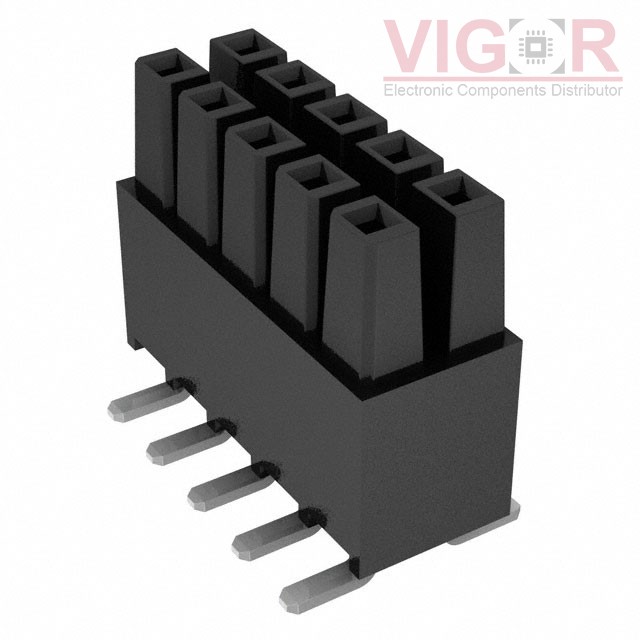

Image is for reference,
please contact us to get the real picture

Part No :: IPS1-105-01-S-D-VS

Manufacturer: Samtec, Inc.

Description: CONN RCPT 10POS 0.1 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: IPS1-105-01-S-D-VS PDF

Availability: 130 pieces

Unit Price: ~~$3.56000~~

Current price of IPS1-105-01-S-D-VS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPS1-105-01-S-D-VS Specifications

Type	Description
Series:	Mini Mate® IPS1
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	10
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Black
Insulation Height:	0.335" (8.51mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	775VAC, 1095VDC
