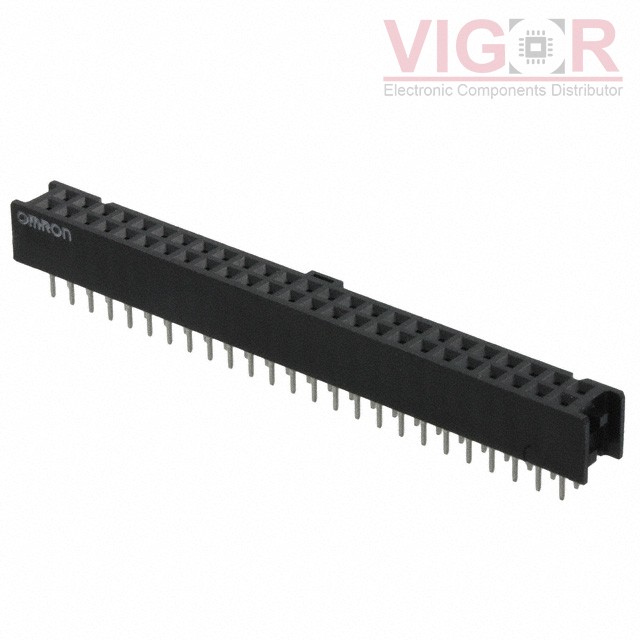

| Type | Description |
|---|---|
| Series: | XG4 |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Receptacle |
| Contact Type: | Female Socket |
| Style: | Board to Board |
| Number of Positions: | 50 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Latch Holder |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 5.90µin (0.150µm) |
| Insulation Color: | Black |
| Insulation Height: | 0.283" (7.19mm) |
| Contact Length - Post: | 0.122" (3.10mm) |
| Operating Temperature: | -55°C ~ 105°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | 9.7mm, 10.1mm |
| Ingress Protection: | - |
| Features: | Polarizing Key |
| Current Rating (Amps): | 3A |
| Voltage Rating: | 300VAC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 |
Current price of XG4H-5071 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
