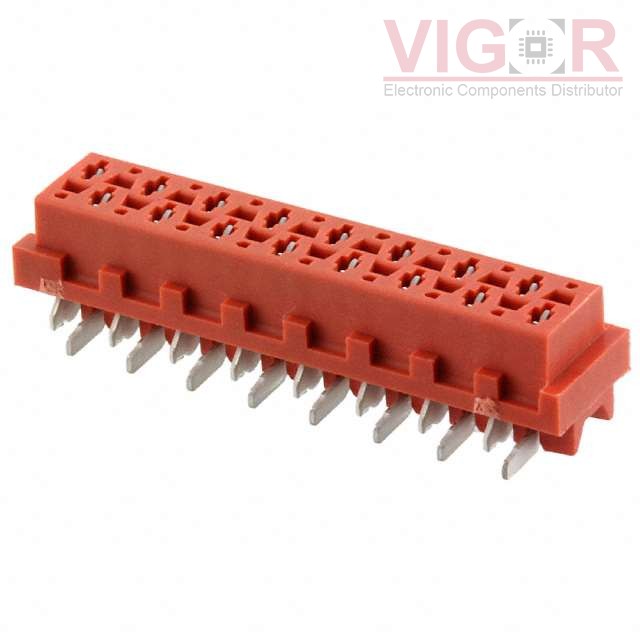

1-188275-6

Part No :: 1-188275-6

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3117127

Description: CONN RCPT 16POS 0.1 TIN SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 1-188275-6 PDF

Current price of 1-188275-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-188275-6 Specifications

Type	Description
Series:	Micro-MaTch
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board or Cable
Number of Positions:	16
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Red
Insulation Height:	0.209" (5.30mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	100VDC
