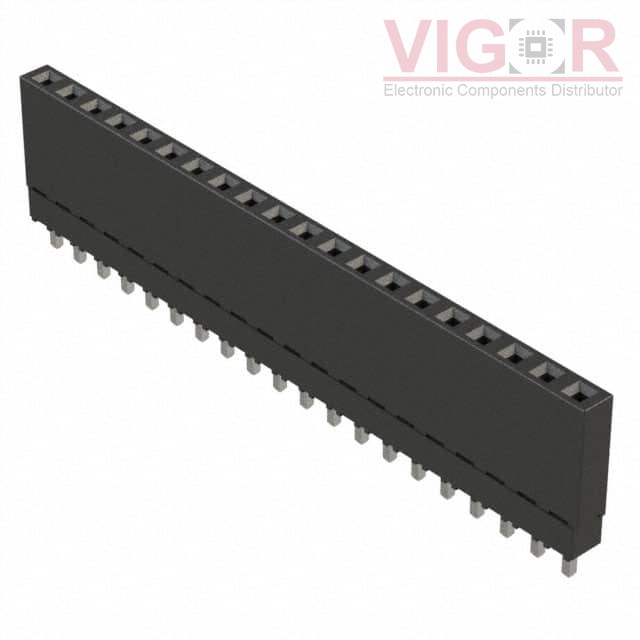

| Type | Description |
|---|---|
| Series: | ESQ |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Elevated Socket |
| Contact Type: | Forked |
| Style: | Board to Board |
| Number of Positions: | 20 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | - |
| Insulation Color: | Black |
| Insulation Height: | 0.435" (11.05mm) |
| Contact Length - Post: | 0.090" (2.29mm) |
| Operating Temperature: | -55°C ~ 105°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | - |
| Ingress Protection: | - |
| Features: | - |
| Current Rating (Amps): | 5.7A per Contact |
| Voltage Rating: | 550VAC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 | ||
| 5000 |
Current price of ESQ-120-12-T-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN RCPT 40POS 0.05 GOLD SMD
CONN RCPT 50POS 0.031 GOLD SMD

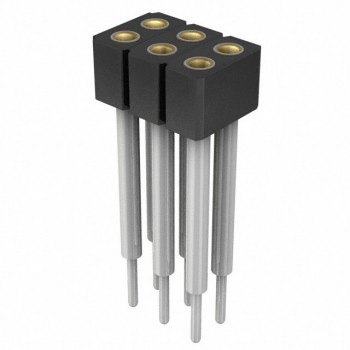

CONN SOCKET 6POS 0.079 GOLD PCB
