1-1775099-3

1-1775099-3

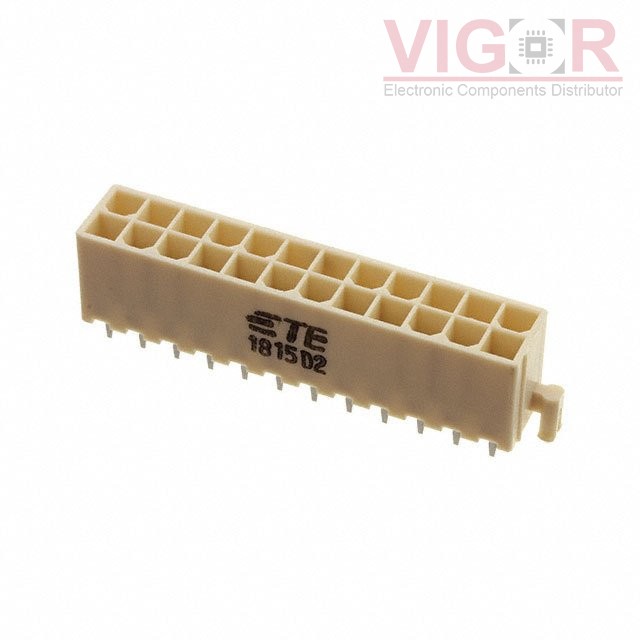

Image is for reference,
please contact us to get the real picture

Part No :

1-1775099-3

Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 24POS 0.165 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 26 - Oct 30 2025
DataSheet
1-1775099-3 PDF
Availability
4798 pieces
Unit Price
$0.81000

Current price of 1-1775099-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-1775099-3 Specifications
Type Description
Series:ATX
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:-
Number of Positions:24
Number of Positions Loaded:All
Pitch - Mating:0.165" (4.20mm)
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:120.0µin (3.05µm)
Insulation Color:Ivory
Insulation Height:0.504" (12.80mm)
Contact Length - Post:0.126" (3.20mm)
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Lock
Current Rating (Amps):9A
Voltage Rating:250VAC
