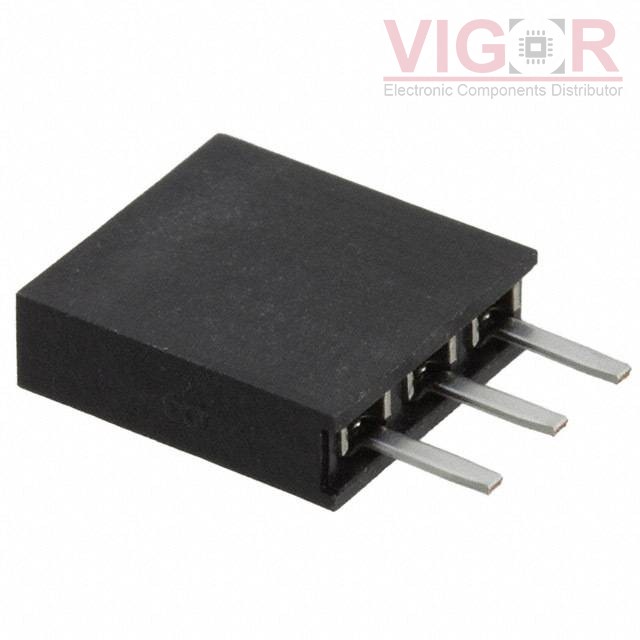

| Type | Description |
|---|---|
| Series: | M20 |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Receptacle |
| Contact Type: | Female Socket |
| Style: | Board to Board or Cable |
| Number of Positions: | 3 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | Flash |
| Insulation Color: | Black |
| Insulation Height: | 0.335" (8.51mm) |
| Contact Length - Post: | 0.118" (3.00mm) |
| Operating Temperature: | -40°C ~ 105°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | 11.04mm, 12.63mm |
| Ingress Protection: | - |
| Features: | - |
| Current Rating (Amps): | 3A |
| Voltage Rating: | 1000V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 71 | ||
| 142 | ||
| 568 | ||
| 1065 | ||
| 5041 | ||
| 10011 |
Current price of M20-7820342 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
