M50-3201045

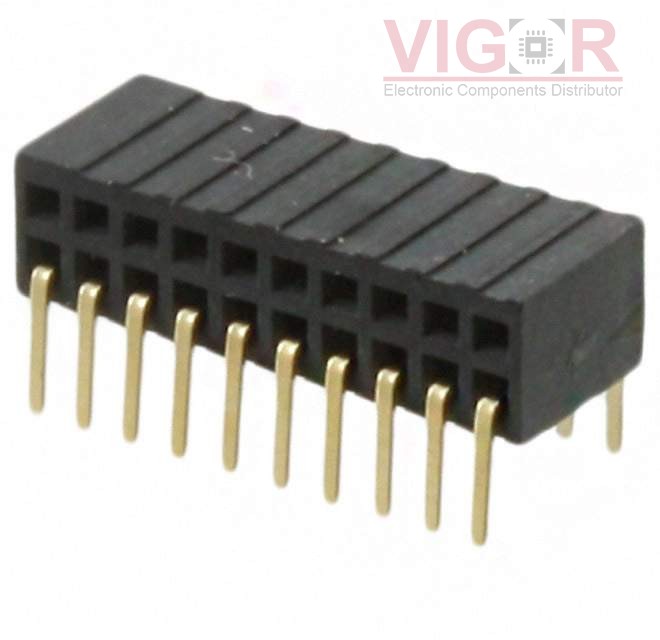

Product image
Product thumb
Part No :

M50-3201045

Manufacturer
Harwin
VIGOR # :

3119713

Description
CONN RCPT 20P 0.05 GOLD PCB R/A
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
DataSheet
M50-3201045 PDF
Country of origin
-
Date code
-
ads
M50-3201045 Specifications
Type Description
Series:Archer M50
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.136" (3.46mm)
Contact Length - Post:0.094" (2.40mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):1A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 361
Shipped from
HK warehouse
Expected Shipping Date
May 03 - May 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.2600 $3.26
44 $2.8640 $126.02
132 $2.6038 $343.70
528 $2.2132 $1 168.57
1012 $1.8877 $1 910.38
5016 $1.6924 $8 489.28

Current price of M50-3201045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
851-87-050-40-252101

851-87-050-40-252101

CONN SOCKET 50P 0.05 GOLD SMD RA

316-41-132-41-008000

316-41-132-41-008000

CONN SOCKET 32POS 0.1 GOLD PCB

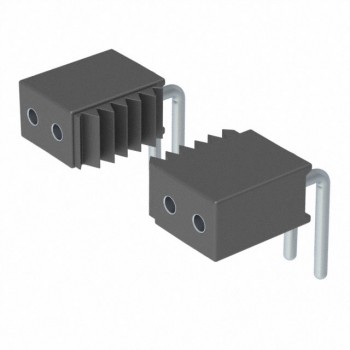

851-99-007-20-001000
