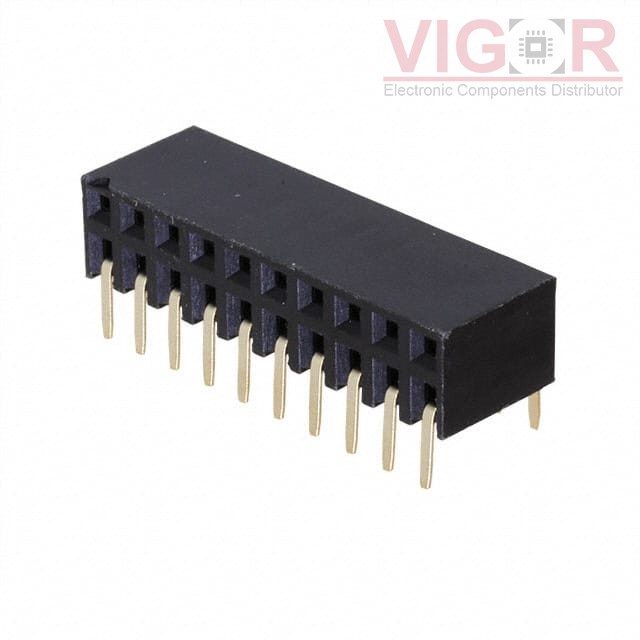

RS2BR-20-G

Part No :: RS2BR-20-G

Manufacturer: Adam Tech

Description: RECEPTACLE STRIP 20P 2.54MM PITC

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: RS2BR-20-G PDF

Availability: 58 pieces

Unit Price: ~~$1.57000~~

Current price of RS2BR-20-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RS2BR-20-G Specifications

Type	Description
Series:	RS2BR
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	20
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Black
Insulation Height:	0.230" (5.85mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	250VAC

Please confirm the specifications of the products when ordering.
