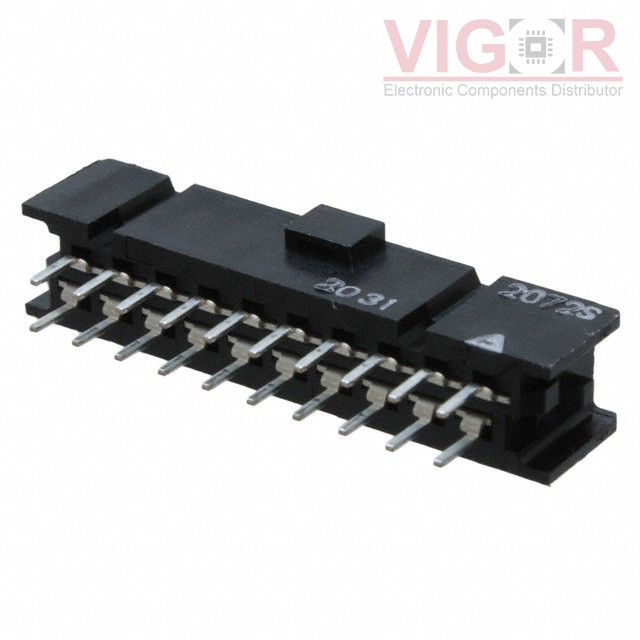

XG4H-2031

Part No :: XG4H-2031

Manufacturer: Omron Electronics Components

Description: CONN RCPT 20POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: XG4H-2031 PDF

Availability: 652 pieces

Unit Price: ~~$4.59000~~

Current price of XG4H-2031 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XG4H-2031 Specifications

Type	Description
Series:	XG4
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	20
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	5.90µin (0.150µm)
Insulation Color:	Black
Insulation Height:	0.283" (7.19mm)
Contact Length - Post:	0.122" (3.10mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	9.7mm, 10.1mm
Ingress Protection:	-
Features:	Polarizing Key
Current Rating (Amps):	3A
Voltage Rating:	300VAC
