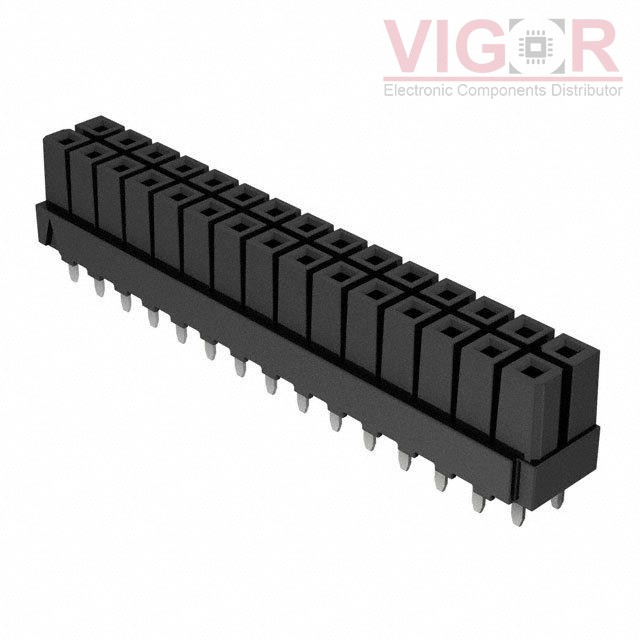

IPBS-115-01-T-D-GP

Part No :: IPBS-115-01-T-D-GP

Manufacturer: Samtec, Inc.

Description: CONN HDR 30POS 0.165 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: IPBS-115-01-T-D-GP PDF

Availability: 317 pieces

Unit Price: ~~$6.45000~~

Current price of IPBS-115-01-T-D-GP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPBS-115-01-T-D-GP Specifications

Type	Description
Series:	Power Mate® IPBS
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	30
Number of Positions Loaded:	All
Pitch - Mating:	0.165" (4.20mm)
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.480" (12.20mm)
Contact Length - Post:	0.155" (3.94mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Guide Pin
Current Rating (Amps):	-
Voltage Rating:	400VAC, 565VDC
