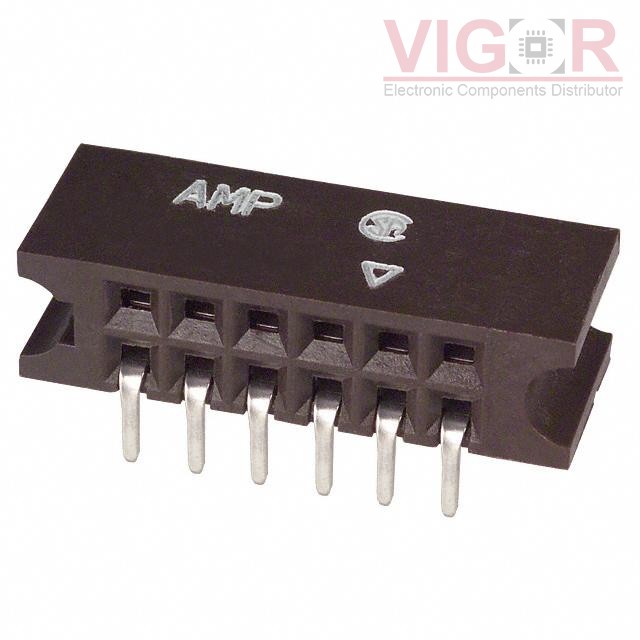

5-532955-1

Part No :: 5-532955-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN RCPT 12POS 0.1 GOLD PCB R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 5-532955-1 PDF

Availability: 7465 pieces

Unit Price: ~~$3.54000~~

Current price of 5-532955-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5-532955-1 Specifications

Type	Description
Series:	AMPMODU Mod II
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Insulation Color:	Black
Insulation Height:	0.238" (6.05mm)
Contact Length - Post:	0.115" (2.92mm)
Operating Temperature:	-
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Guide Pin Ears
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
