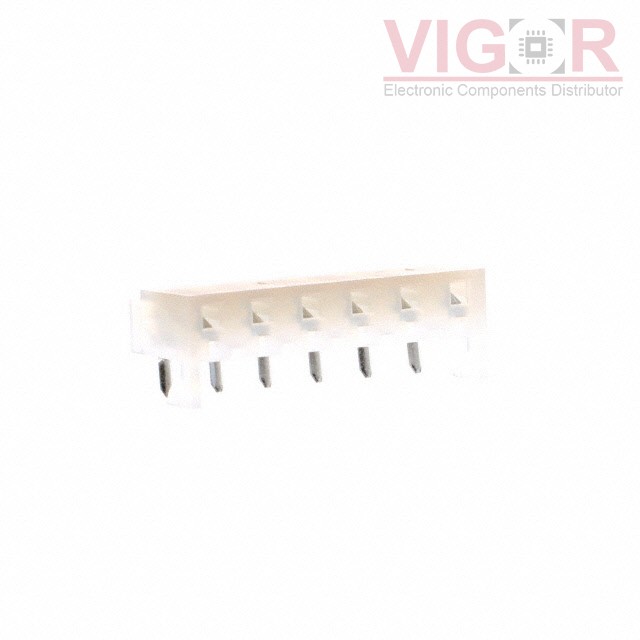

0010101061

Part No :: 0010101061

Manufacturer: Woodhead - Molex

VIGOR # :: 3124241

Description: CONN RCPT 6POS 0.2 TIN EDGE MNT

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 0010101061 PDF

Country of origin: -

Date code: -

0010101061 Specifications

Type	Description
Series:	KK508, 3002
Package:	Bag
Part Status:	Obsolete
Connector Type:	Receptacle
Contact Type:	Non-Gendered
Style:	Board to Board or Cable
Number of Positions:	6
Number of Positions Loaded:	All
Pitch - Mating:	0.200" (5.08mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Insulation Color:	Natural
Insulation Height:	0.236" (6.00mm)
Contact Length - Post:	0.170" (4.32mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-2
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Hooks
Current Rating (Amps):	5A
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 244

Shipped from

HK warehouse

Expected Shipping Date

Jan 13 - Jan 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.46~~	~~$1.46~~
10	~~$1.32~~	~~$13.23~~
25	~~$1.24~~	~~$31.05~~
50	~~$1.19~~	~~$59.40~~
100	~~$1.13~~	~~$113.40~~
250	~~$1.03~~	~~$256.50~~
500	~~$0.94~~	~~$472.50~~
1000	~~$0.81~~	~~$810.00~~
2500	~~$0.76~~	~~$1 890.00~~

Current price of 0010101061 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CLP-142-02-L-DH

CONN RCPT 84P 0.05 GOLD SMD R/A

SL-105-TT-19

CONN RCPT 5POS 0.1 TIN PCB

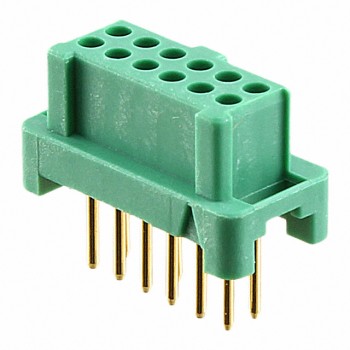

G125-FV11205L0P
