0447642001

0447642001

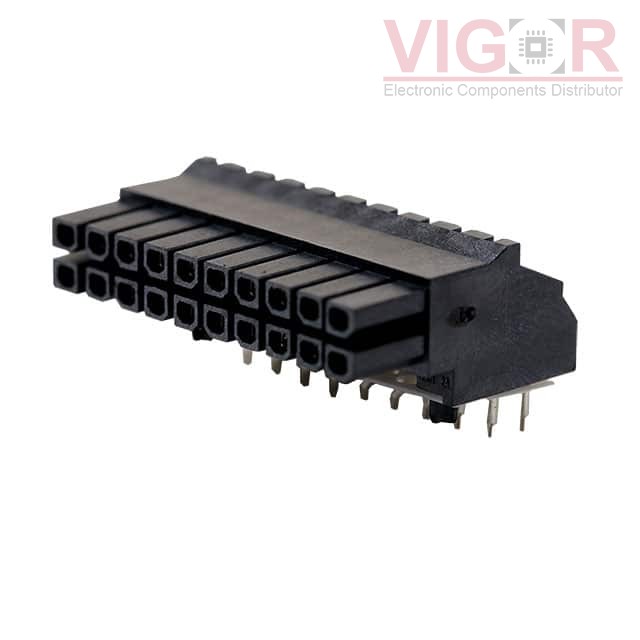

Image is for reference,
please contact us to get the real picture

Part No :

0447642001

Manufacturer
Woodhead - Molex
Description
CONN RCPT 20P 0.118 TIN PCB R/A
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 27 - Oct 31 2025
DataSheet
0447642001 PDF
Availability
0 pieces
Unit Price
$6.83000

Current price of 0447642001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0447642001 Specifications
Type Description
Series:Micro-Fit 3.0 BMI 44764
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.118" (3.00mm)
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:40.0µin (1.02µm)
Insulation Color:Black
Insulation Height:0.402" (10.20mm)
Contact Length - Post:0.155" (3.94mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):5A
Voltage Rating:600VAC
