ESD-108-T-03

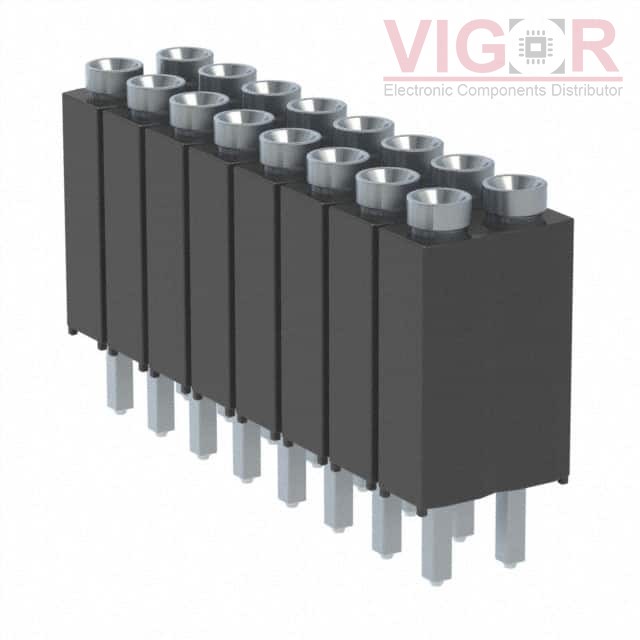

Image is for reference,
please contact us to get the real picture

Part No :: ESD-108-T-03

Manufacturer: Samtec, Inc.

Description: CONN SOCKET 16POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: ESD-108-T-03 PDF

Availability: 0 pieces

Unit Price: ~~$6.88000~~

Current price of ESD-108-T-03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESD-108-T-03 Specifications

Type	Description
Series:	ESD
Package:	Bulk
Part Status:	Active
Connector Type:	Elevated Socket
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	16
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.300" (7.62mm)
Contact Length - Post:	0.153" (3.89mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
