SSW-105-02-G-T-RA

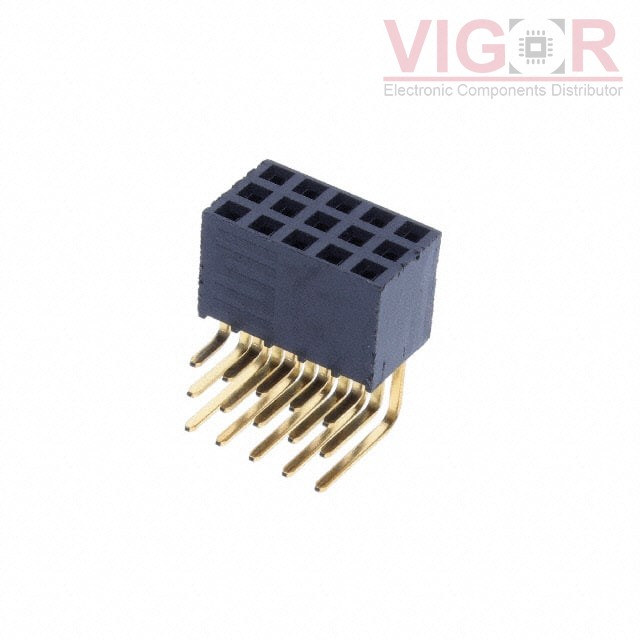

Image is for reference,
please contact us to get the real picture

Part No :: SSW-105-02-G-T-RA

Manufacturer: Samtec, Inc.

Description: CONN RCPT 15POS 0.1 GOLD PCB R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SSW-105-02-G-T-RA PDF

Availability: 103 pieces

Unit Price: ~~$3.33000~~

Current price of SSW-105-02-G-T-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSW-105-02-G-T-RA Specifications

Type	Description
Series:	SSW
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board or Cable
Number of Positions:	15
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	3
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Insulation Color:	Black
Insulation Height:	0.295" (7.50mm)
Contact Length - Post:	0.100" (2.54mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	5.7A per Contact
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
