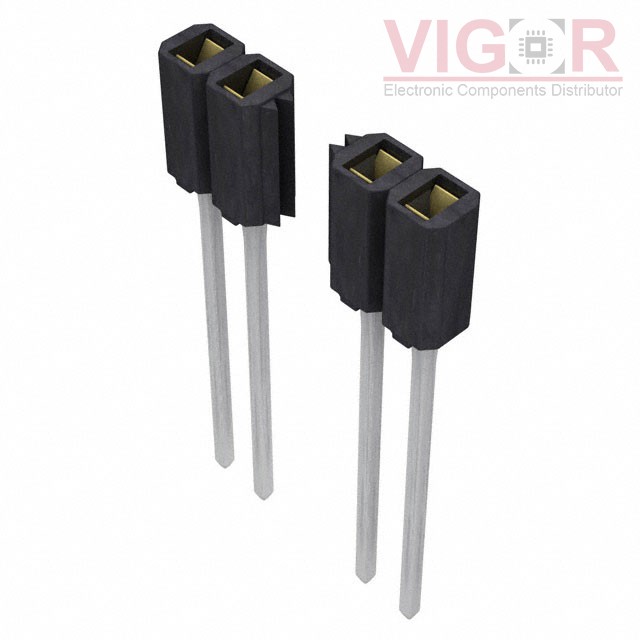

SSA-109-W-G

Part No :: SSA-109-W-G

Manufacturer: Samtec, Inc.

Description: CONN RCPT 9POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SSA-109-W-G PDF

Availability: 0 pieces

Unit Price: ~~$2.71000~~

Current price of SSA-109-W-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSA-109-W-G Specifications

Type	Description
Series:	SSA
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Breakaway
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	9
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Wire Wrap
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.230" (5.85mm)
Contact Length - Post:	0.656" (16.66mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	-
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	1000V

Please confirm the specifications of the products when ordering.
