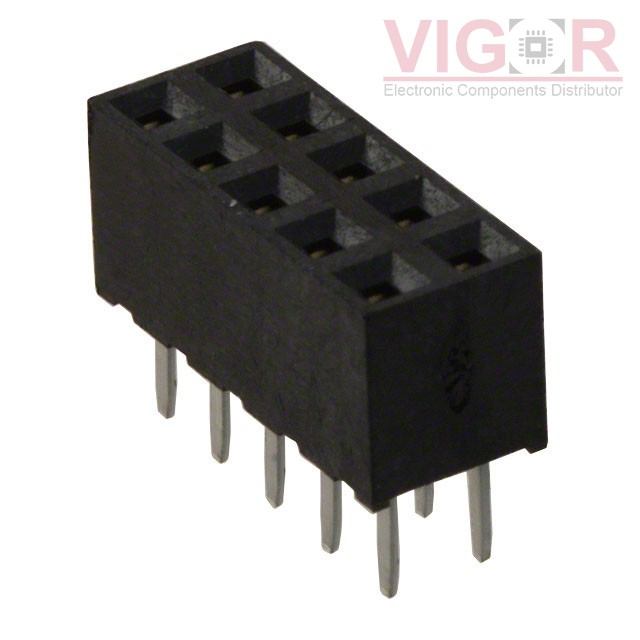

M22-7140542

Part No :: M22-7140542

Manufacturer: Harwin

Description: CONN RCPT 10POS 0.079 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: M22-7140542 PDF

Availability: 7203 pieces

Unit Price: ~~$1.43000~~

Current price of M22-7140542 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M22-7140542 Specifications

Type	Description
Series:	M22
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	10
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.173" (4.40mm)
Contact Length - Post:	0.094" (2.40mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	5.8mm, 6.55mm, 6.8mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	2A
Voltage Rating:	500VAC
